Automotive Turnkey PCBA with IATF16949 Compliance
Overview
The automotive industry is undergoing a profound transformation. Electric vehicles, advanced driver assistance systems, autonomous driving, and connected car technologies are driving unprecedented demand for high-performance, ultra-reliable electronics. At the same time, the zero-defect expectations of automotive OEMs have never been more demanding. At Studio, we operate under the framework of IATF16949—the automotive-specific quality management standard that goes beyond ISO9001 with additional requirements for product safety, defect prevention, and supply chain consistency. Our Automotive Turnkey PCBA with IATF16949 Compliance delivers boards that meet the rigorous performance, reliability, and documentation standards of the automotive sector.

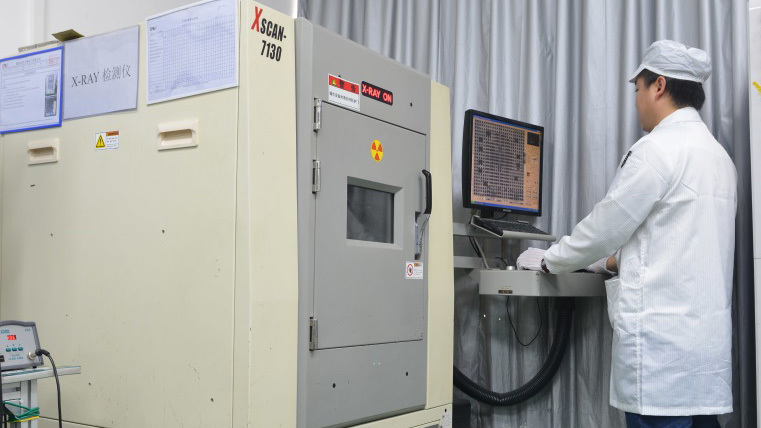

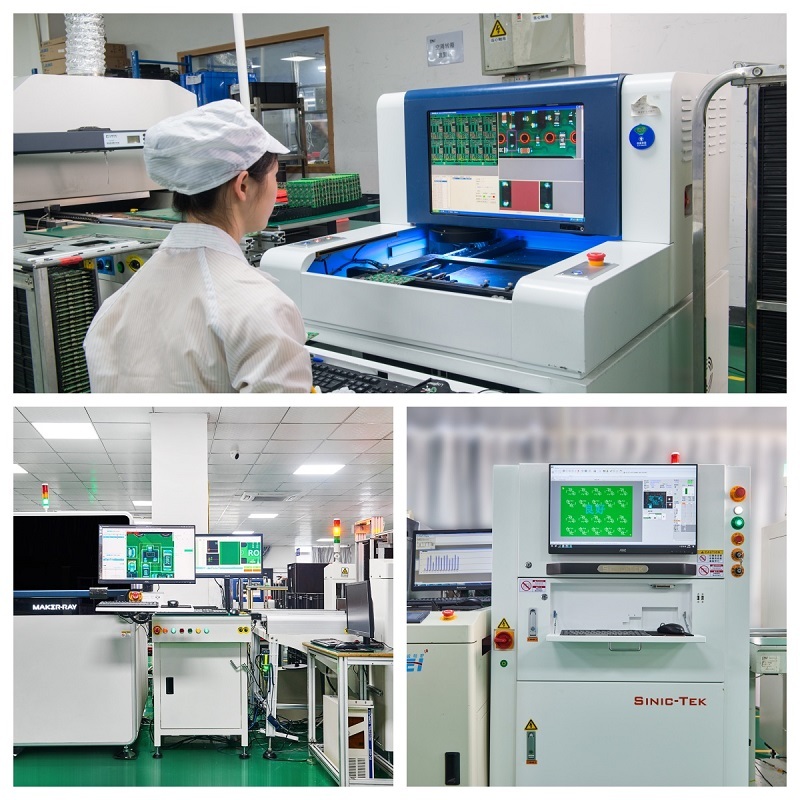

Our IATF16949-certified processes are powered by advanced manufacturing infrastructure: 12 fully automated SMT production lines, automated wave soldering, programmable robotic soldering systems, and a comprehensive inspection suite including AOI, SPI, 3D X-Ray, ICT, FCT, flying probe testers, and an accredited reliability laboratory. Every board is built to IPC Class 3 standards with PPAP documentation available for automotive customer approval.
What IATF16949 Means for Your PCB Assembly
IATF16949 is the global standard for automotive quality management. It incorporates ISO9001 requirements and adds automotive-specific provisions for defect prevention, variation reduction, and supply chain consistency. This standard has direct implications for your PCB assembly:
| Automotive Requirement |
How Studio Delivers |
| Zero-Defect Culture |
Integrated quality systems that prevent defects, not just detect them |
| Product Safety |
Risk management and failure mode analysis applied to assembly processes |
| Process Capability |
Statistical process control (SPC) and Cpk monitoring for critical parameters |
| PPAP Documentation |
Full Production Part Approval Process documentation for customer approval |
| Supply Chain Consistency |
Supplier quality management with audited, approved suppliers |
| Traceability |
Full lot traceability from component supplier to finished assembly |
| Change Control |
Strict notification protocols for any material, process, or equipment change |
PPAP – Production Part Approval Process
For automotive programs, PPAP documentation is often a contractual requirement. Our IATF16949 system includes full PPAP support at the required submission level:
| PPAP Element |
What We Deliver |
| Design Records |
Drawings, specifications, and CAD data for the assembly |
| Process Flow Diagram |
Visual representation of every step in your assembly process |
| Process FMEA |
Failure mode analysis for assembly processes |
| Control Plan |
Documented controls for every process step and quality characteristic |
| Measurement System Analysis |
Gauge R&R studies for test and inspection equipment |
| Capability Study |
Cpk data for critical process parameters |
| Part Submission Warrant |
Formal submission document for customer sign-off |
Our Automotive-Grade Manufacturing Capabilities
| Capability |
Automotive Specification |
| Board Types |
Rigid, flexible, rigid-flex, HDI, high-density multi-layer (up to 20+ layers) |
| Assembly Technologies |
SMT, THT, mixed technology, double-sided assembly |
| Soldering Systems |
Automated wave soldering, selective soldering, robotic soldering |
| SMT Lines |
12 fully automated lines with 01005 and micro-BGA capability |
| Inspection Equipment |
AOI, SPI, 3D X-Ray, ICT, flying probe, FCT |
| Testing Services |
Functional testing, thermal cycling, thermal shock, humidity, vibration, burn-in |
| Certifications |
IATF16949, ISO9001 |
| Documentation |
PPAP, IMDS, full material traceability, control plans, FMEA |
Quality Systems – Built for Automotive-Grade Reliability
-
IATF16949 Certified Quality Management – Automotive-specific quality standards applied to every process
-

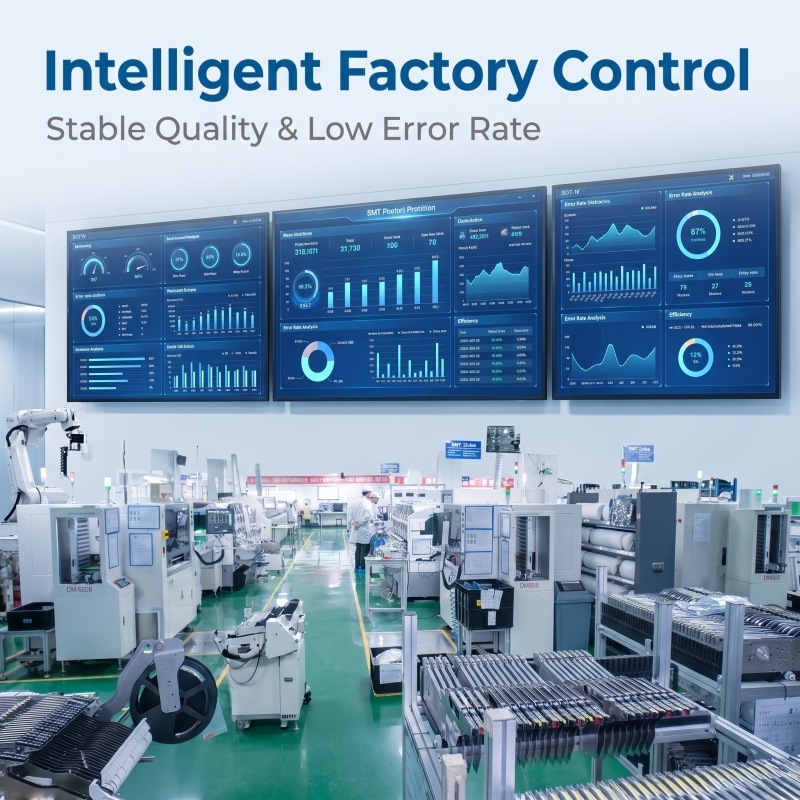

End-to-End Traceability – MES and ERP systems track every component from receipt to shipment
-
Incoming Component Verification – LCR testing and visual verification ensure specification compliance
-
Real-Time Fault Detection – Automated inspection identifies and corrects issues during production
-
Statistical Process Control – Continuous monitoring of critical process parameters with Cpk reporting
-
PPAP Documentation Support – Full submission package for customer approval
-
Environmental Testing – Thermal cycling, thermal shock, humidity, and vibration testing available
Applications We Support
| Application Category |
Typical Products |
| Powertrain & Engine Control |
ECUs, transmission controllers, engine management modules |
| Battery & Energy Management |
BMS, battery monitoring units, DC-DC converters |
| ADAS & Safety Systems |
Radar, LiDAR, camera modules, domain controllers |
| Lighting Systems |
LED headlamps, adaptive lighting modules, interior lighting |
| Infotainment & Connectivity |
Displays, telematics, navigation, V2X communication |
| Body Electronics |
Door modules, seat controllers, climate control, window lift |
| Chassis & Motion Control |
ABS modules, power steering, suspension systems |
Why Choose Studio for Automotive-Grade PCBA
-
IATF16949 Certified – Automotive-quality management system for zero-defect programs
-
PPAP Documentation Support – Full submission package at required level
-
IPC Class 3 Compliance – Highest reliability classification for automotive applications
-
12 Automated SMT Lines – High-volume capacity with automotive-grade precision
-
Comprehensive Testing – AOI, SPI, X-Ray, ICT, FCT, and reliability lab
-
Full Traceability – Component-level material genealogy for every board
-
Supply Chain Security – Proactive lifecycle management for long-term availability
-
Environmental Testing – Thermal cycling, thermal shock, humidity, and vibration capabilities
Partner with Studio for Your Automotive Program
Automotive electronics demand a manufacturing partner who understands the zero-defect culture, documentation requirements, and reliability expectations of the automotive sector. With Studio's Automotive Turnkey PCBA with IATF16949 Compliance, you gain a certified partner with proven capabilities in automotive-grade manufacturing, PPAP documentation, and quality systems that meet the scrutiny of automotive OEMs and Tier 1 suppliers. Contact us today to discuss your automotive project requirements
